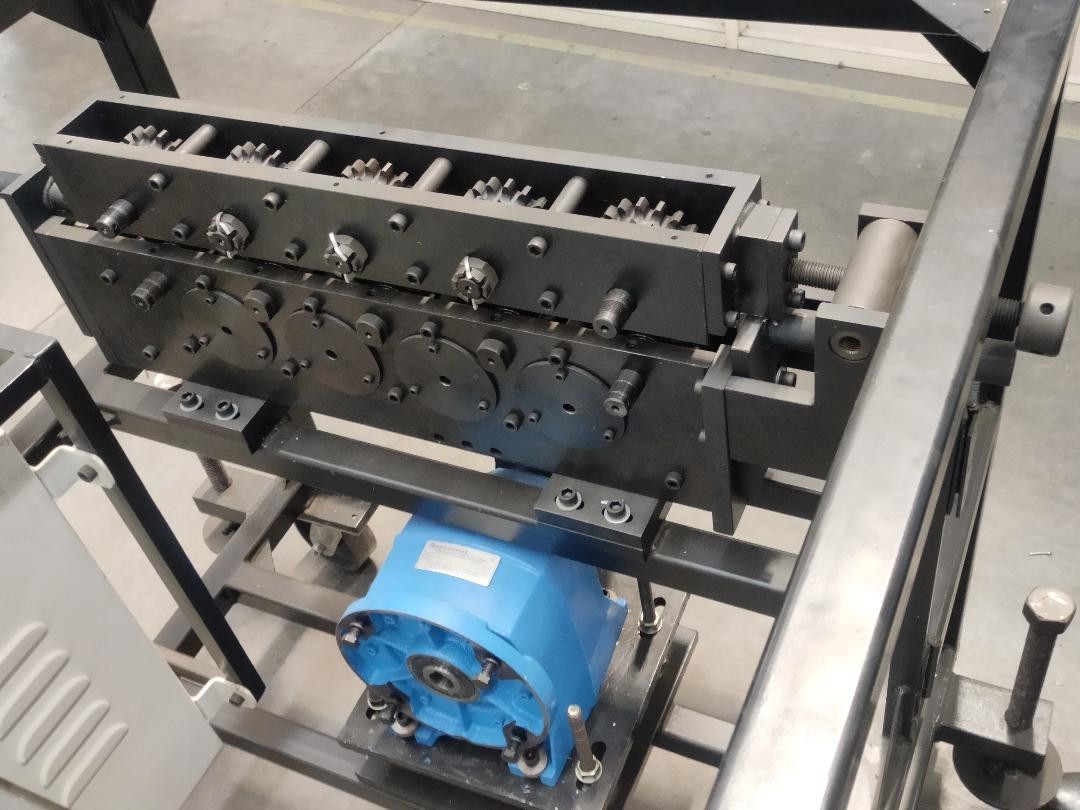

The Strand Pushing Machine offers the most efficient method for tendon installation, pushing strands directly from the coil into the duct, eliminating the need for double handling. Each strand's leading edge is fitted with a bullet to prevent duct damage during insertion. This method is particularly effective for installing long tendons. Depending on tendon type and profile, our Dynamic Strand Pushing Machine is tailored to handle specific strand sizes.
Widely used by Dynamic Prestress, the machine threads strands of diameters 12.7, 15.2, and 15.7 mm. It efficiently handles any number of strands of tendons and lengths up to 200 meters. Applications span critical infrastructure, including nuclear containment structures, flyovers, bridges, metro viaducts, and aqueducts, ensuring faster construction and reduced labour needs. Internal tendon ducts are installed before concreting, with strands threaded through coils positioned in the decoiler. Dynamic Prestress currently utilizes three advanced Strand Pushing Machine models.

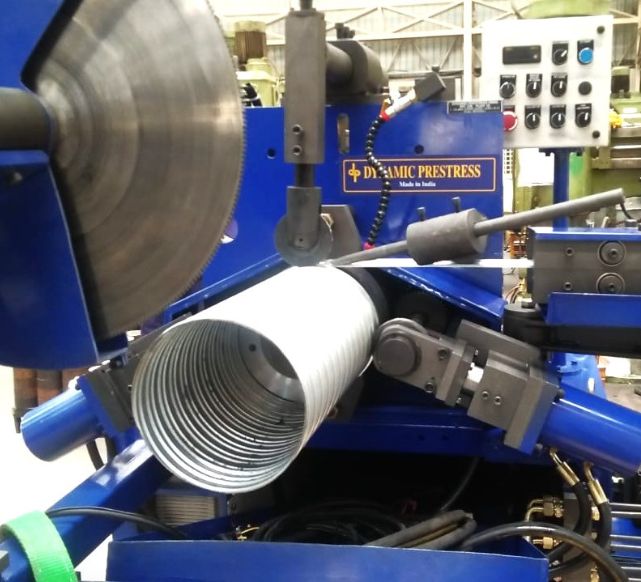

Our sheathing ducts are made from high-quality steel strips, spirally wound, folded, and lock-seamed using advanced Duct machines. These electrically operated machines are easy to install, allowing for on-site installation to streamline production and eliminate the need for duct transportation. This ensures faster manufacturing and enhanced efficiency in your construction projects.

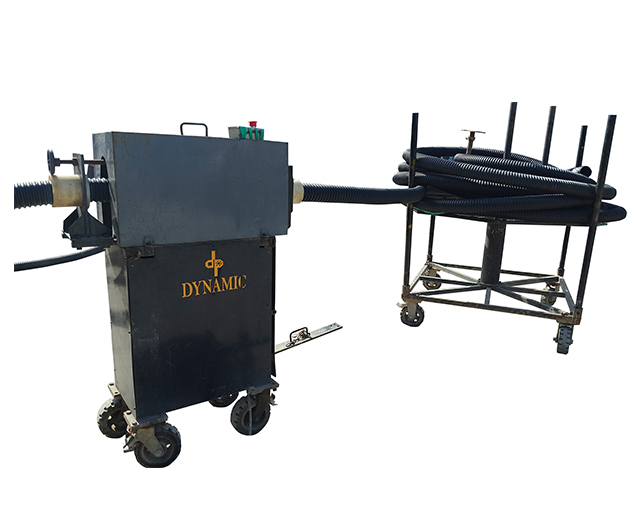

For internal tendons, HDPE/PP ducts are placed within the rebar cage before concreting. For longer-span tendons, coils of duct are mounted on a dispenser. The Dynamic Duct Pusher Machine or a winch arrangement efficiently pushes the duct into the rebar cage, ensuring precise placement and smooth operation.

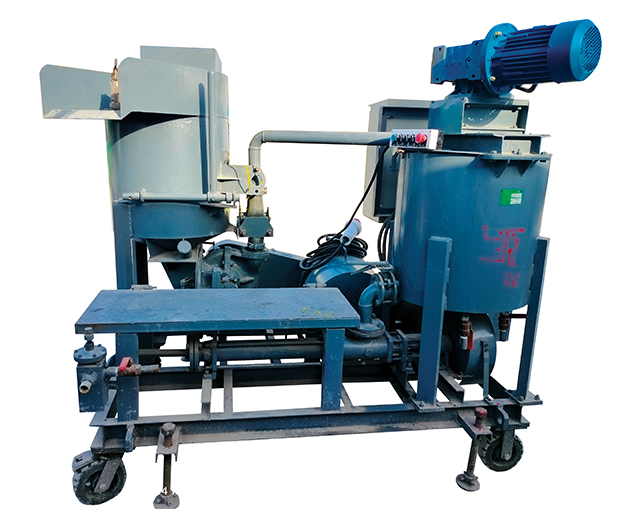

The CGP-5000 Electric Cement Grouting Pump includes:
Colloidal Mixer: Electrically driven for efficient mixing.
Agitator: Electrically driven to maintain grout consistency.
Grout Pump: Reliable and robust for consistent grout delivery.
Control Panel: User-friendly for easy operation.
Calibrated Water Tank: Mounted on a welded steel frame for durability and accuracy.
